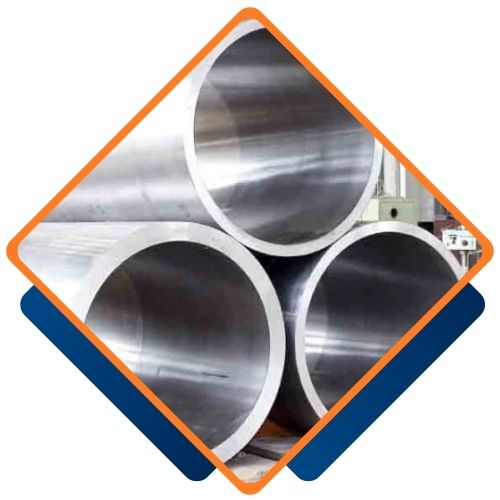

Leading the industrial landscape in Kinshasa, Wissa Pipes has established itself as a trusted partner for robust and reliable materials, proudly supplying Duplex Steel Pipes 2205. We understand the demanding environments faced by local industries, which is why we specialize in providing this superior-grade piping solution. Our commitment is to support the growth and durability of your projects with products engineered for exceptional performance, ensuring you have access to the very best materials right here in the heart of Congo.
Duplex Steel 2205 gets its strength from a balanced composition of chromium, nickel, molybdenum, and nitrogen. This unique blend creates a dual-phase microstructure that delivers an outstanding combination of high tensile strength and impressive toughness. The result is a pipe that is remarkably resistant to stress corrosion cracking, offering a level of durability far superior to standard stainless steels, which makes it an incredibly reliable choice for challenging applications.
| Pipe Standard | AISI, DIN, EN, GB, JIS, ASTM, ASME |
|---|---|
| Seamless Pipe Outer Diameter | 6.00 MM OD up – 250 MM OD, Sizes up to 12 Inch NB |
| Welded Pipes sizes | 5.0 MM – 1219.2 MM |
| EFW Pipes size | 5.0 MM to 1219.2 MM |
| Pipe Thickness | 0.3MM to 50 MM |
| Size | 3.35 – 101.6 MM OD, 15 – 150 NB Inch |
| Size | 6.35 – 152 MM outer diameter |
| wall thickness | 0.020 inch to 0.220inch |
| Schedule | Schedule 5, 10, 40, 80, 80S, 160, XXS, XS Duplex 2205 Pipe Supplier |
| Finish | Annealedand Pickled, Polished, Mirror finish, Bright and Annealed, MF, NO.1, NO.4, 2B, BA, HL, 8K, etc |
| Form | Straight Pipes, Round, Rectangular, Hydraulic, Square, Coiled, U Shape, Hollow etc. |
| Pipe Length | Single Random, Double Random, Standard & Cut length |
| End | Plain End, Beveled End, Treaded Pipe. |
| Tubes Types | Alloy 2205 Seamless, ERW, EFW, Welded, Fabricated, CDW, DOM, CEW Pipes |
| Pipe Marking | All Pipes are marked as follows: Supplier or Manufacturer’s Name, Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Boiler, Heatexchanger, Oil Tube, Gas Tube and Fluid Tube |
| Carbon | Nitrogen | Phosphorus | Silicon | Manganese | Molybdenum | Iron | Chromium | Sulfur | Nickel |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Density | Melting Point | Yield Strength | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C | Psi – 80000, MPa – 550 | Psi – 116000, MPa – 800 | 15 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Pipes 2205 from Wissa Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Wissa Pipes and Tubes, one of the largest suppliers of Duplex Steel Pipes 2205 in Kinshasa, Thailand, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Duplex Steel Pipes 2205 to meet your specific requirements. Our team at Wissa Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@wissapipes.com.
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 Pipe | 1.4462 / 1.4462 | S31803 / S32205 |
| Pipe Outer Diameter in mm | Pipe Wall Thickness in mm | inches | Schedule | Kg/m |
|---|---|---|---|---|
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Duplex Steel Pipes 2205 are widely utilized in the oil and gas sector for subsea pipelines, risers, and offshore platforms where resistance to seawater is crucial. In chemical and petrochemical facilities, they are used for process piping, storage tanks, and heat exchangers that handle aggressive fluids. Power generation plants incorporate them in boilers, condensers, and superheaters. The marine industry relies on these pipes for shipbuilding, seawater systems, and desalination plants. Additionally, they find applications in pulp & paper manufacturing and structural projects, providing durability, efficiency, and reliability in high-stress, corrosive environments.
